"Type E" Pillow BLocks - 2 Bolt Base
"Type E" Pillow Blocks are the most widely used of the "E" Series due to the variety of mounting methods. They are available in both 2-bolt base and 4 bolt base styles. All units are supplied with Timken® tapered roller bearings, dual locking collars and Royersford's exclusive dual lip, medium contact seals.

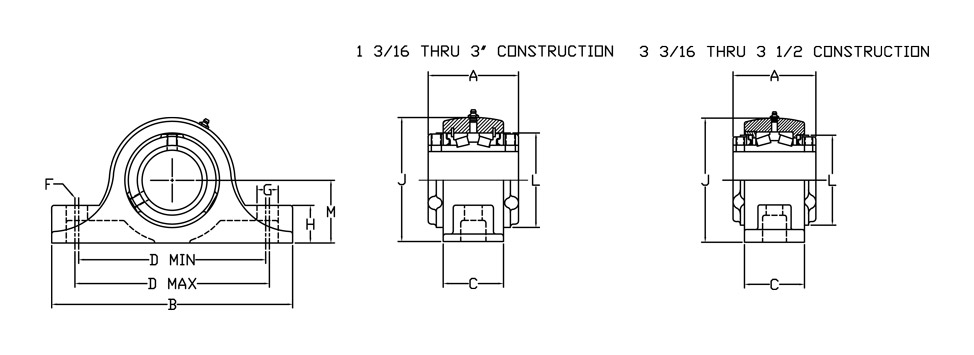

Type E Pillow Blocks – 2 Bolt Base
| Shaft Size |
Part Number |
Wt. |
A |
B |
C |
D |
F |
G |
H |
J |
L |
M |
| Min. |
Max. |
|
|
|
4.0 |
2 3/4 |
6 |
1 7/8 |
4 3/4 |
4 13/16 |
3/8 |
19/32 |
7/8 |
3 |
2 1/4 |
1 1/2 |
|
|
|
6.9 |
3 |
7 3/8 |
2 1/8 |
5 3/8 |
5 7/8 |
1/2 |
3/4 |
1 1/8 |
3 3/4 |
2 3/4 |
1 7/8 |
|
|
|
20-02-0108 |
|
20-02-0110
|
|
20-02-0111
|
|
9.5 |
3 3/8 |
7 7/8 |
2 3/8 |
6 1/8 |
6 3/8 |
1/2 |
3/4 |
1 1/4 |
4 1/4 |
3 3/16 |
2 1/8 |
|
|
|
20-02-0112 |
|
20-02-0114
|
|
20-02-0115
|
|
20-02-0200
|
|
11.0 |
3 1/2 |
8 7/8 |
2 1/2 |
6 7/8 |
7 1/8 |
5/8 |
7/8 |
1 5/16 |
4 1/2 |
3 7/16 |
2 1/4 |
| 2 3/16 |
20-02-0203 |
14.0 |
3 3/4 |
9 5/8 |
2 5/8 |
7 5/8 |
7 7/8 |
5/8 |
7/8 |
1 1/2 |
5 |
3 3/4 |
2 1/2 |
|
|
|
20-02-0204 |
|
20-02-0207
|
|
20-02-0208
|
|
19.0 |
4 |
10 1/2 |
2 7/8 |
8 3/8 |
8 5/8 |
5/8 |
7/8 |
1 5/8 |
5 1/2 |
4 1/16 |
2 3/4 |
|
|
|
20-02-0211 |
|
20-02-0212
|
|
20-02-0215
|
|
20-02-0300
|
|
26.0 |
4 1/2 |
12 |
3 |
9 5/16 |
9 11/16 |
3/4 |
1 |
1 7/8 |
6 1/4 |
4 23/32 |
3 1/8 |
|
3 3/16 |
|
3 1/4
|
|
3 7/16
|
|
3 1/2
|
|
| 20-02-0303 |
| 20-02-0304 |
| 20-02-0307 |
| 20-02-0308 |
|
44.0 |
5 |
14 |
3 5/8 |
10 13/16 |
11 3/16 |
7/8 |
1 3/16 |
2 1/4 |
7 1/2 |
5 7/16 |
3 3/4 |
Gray iron housing furnished unless otherwise specified.
♦ 2-Bolt Base regularly furnished insizes 2 1/4" to 3 1/2" inclusive.
