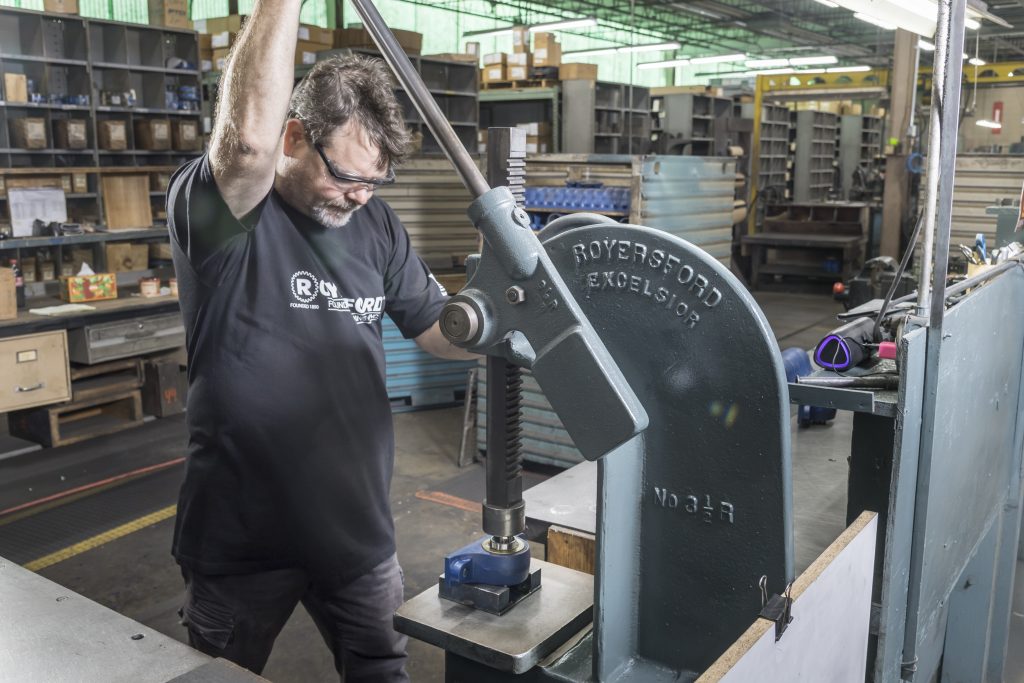

Royersford Arbor Presses are built to withstand repeated heavy-duty use in demanding shop and industrial environments. Designed with rugged cast iron frames and precision steel components, these presses deliver dependable performance, long service life, and consistent alignment.
*All Arbor Presses are made to order.
Include but are not limited to:
Part Number | Shaft Size (in.) | Wt. | App. Wt. | Wt. (Oz.) | A (in.) | AA (in.) | B (in.) | BB (in.) | Bolts Size (in.) | C (in.) | CC (in.) | D (in.) | D (Min.) (in.) | D (Max.) (in.) | E (in.) | F (in.) | F Bolt (in.) | F Dia. Bolt (in.) | F Screw (in.) | G (in.) | H (in.) | Inside Dia. (in.) | J (in.) | K (in.) | Keyway Size (in.) | L (in.) | Length (in.) | M (in.) | N (in.) | Number of Bolts | Outside Dia. (in.) | P (in.) | Pipe Tap | Q (in.) | R (in.) | S (in.) | Set Screw (in.) | T (in.) | V (in.) | W (in.) | Width (in.) | Y (in.) | Press No. | Shipping Wt. (lbs.) | Dia. of Work (in.) | Capacity Over Table (in.) | Capacity Over Plate (in.) | Size of Ram (in.) | Leverage Ratio | App. Tons Press. | Height of Press (in.) | Largest Arbor (in.) | Base Dimensions (in.) | Size of Rolls | Number of Rolls | Split Outer Race |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 25 | 7 | 4.5 | 4 | 3⁄4 x 3⁄4 x 7 1⁄2 | 20-1 | 0.5 | 9.75 | 1 1⁄8 | 4 x 9 | ||||||||||||||||||||||||||||||||||||||||||||||
1 | 45 | 8.5 | 5.25 | 4.625 | 1 x 1 x 9 1⁄2 | 25-1 | 0.75 | 11.75 | 1 3⁄8 | 5 x 10 3⁄4 | ||||||||||||||||||||||||||||||||||||||||||||||
2 | 96 | 13.5 | 8.75 | 7.875 | 1 1⁄4 x 1 1⁄4 x 13 7⁄8 | 35-1 | 2 | 16.75 | 1 3⁄4 | 6 7⁄8 x 16 5⁄8 | ||||||||||||||||||||||||||||||||||||||||||||||
3 | 220 | 15.25 | 12.75 | 11.75 | 1 1⁄2 x 1 1⁄2 x 18 | 50-1 | 3 | 21.625 | 2 1⁄2 | 8 x 18 | ||||||||||||||||||||||||||||||||||||||||||||||
3.5 | 300 | 18 | 17.5 | 16 | 1 3⁄4 x 1 3⁄4 x 23 3⁄4 | 60-1 | 4 | 28.75 | 3 1⁄2 | 9 x 22 |
All product weights are listed in pounds (Lbs.) unless otherwise noted.
Part Number | Shaft Size (in.) | Wt. | App. Wt. | Wt. (Oz.) | A (in.) | AA (in.) | B (in.) | BB (in.) | Bolts Size (in.) | C (in.) | CC (in.) | D (in.) | D (Min.) (in.) | D (Max.) (in.) | E (in.) | F (in.) | F Bolt (in.) | F Dia. Bolt (in.) | F Screw (in.) | G (in.) | H (in.) | Inside Dia. (in.) | J (in.) | K (in.) | Keyway Size (in.) | L (in.) | Length (in.) | M (in.) | N (in.) | Number of Bolts | Outside Dia. (in.) | P (in.) | Pipe Tap | Q (in.) | R (in.) | S (in.) | Set Screw (in.) | T (in.) | V (in.) | W (in.) | Width (in.) | Y (in.) | Press No. | Shipping Wt. (lbs.) | Dia. of Work (in.) | Capacity Over Table (in.) | Capacity Over Plate (in.) | Size of Ram (in.) | Leverage Ratio | App. Tons Press. | Height of Press (in.) | Largest Arbor (in.) | Base Dimensions (in.) | Size of Rolls | Number of Rolls | Split Outer Race |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3R | 230 | 15.25 | 12.75 | 11.75 | 1 1⁄2 x 1 1⁄2 x 18 | 60-1 | 4 | 21.625 | 2 1⁄2 | 8 x 18 | ||||||||||||||||||||||||||||||||||||||||||||||
3 1⁄2R | 335 | 18 | 17.5 | 16 | 1 3⁄4 x 1 3⁄4 x 23 3⁄4 | 70-1 | 5 | 28.75 | 3 1⁄2 | 9 x 22 |
All product weights are listed in pounds (Lbs.) unless otherwise noted.
Every Royersford product is crafted right here in the USA, combining over a century of hands-on experience with the kind of quality you only get from American manufacturing.
