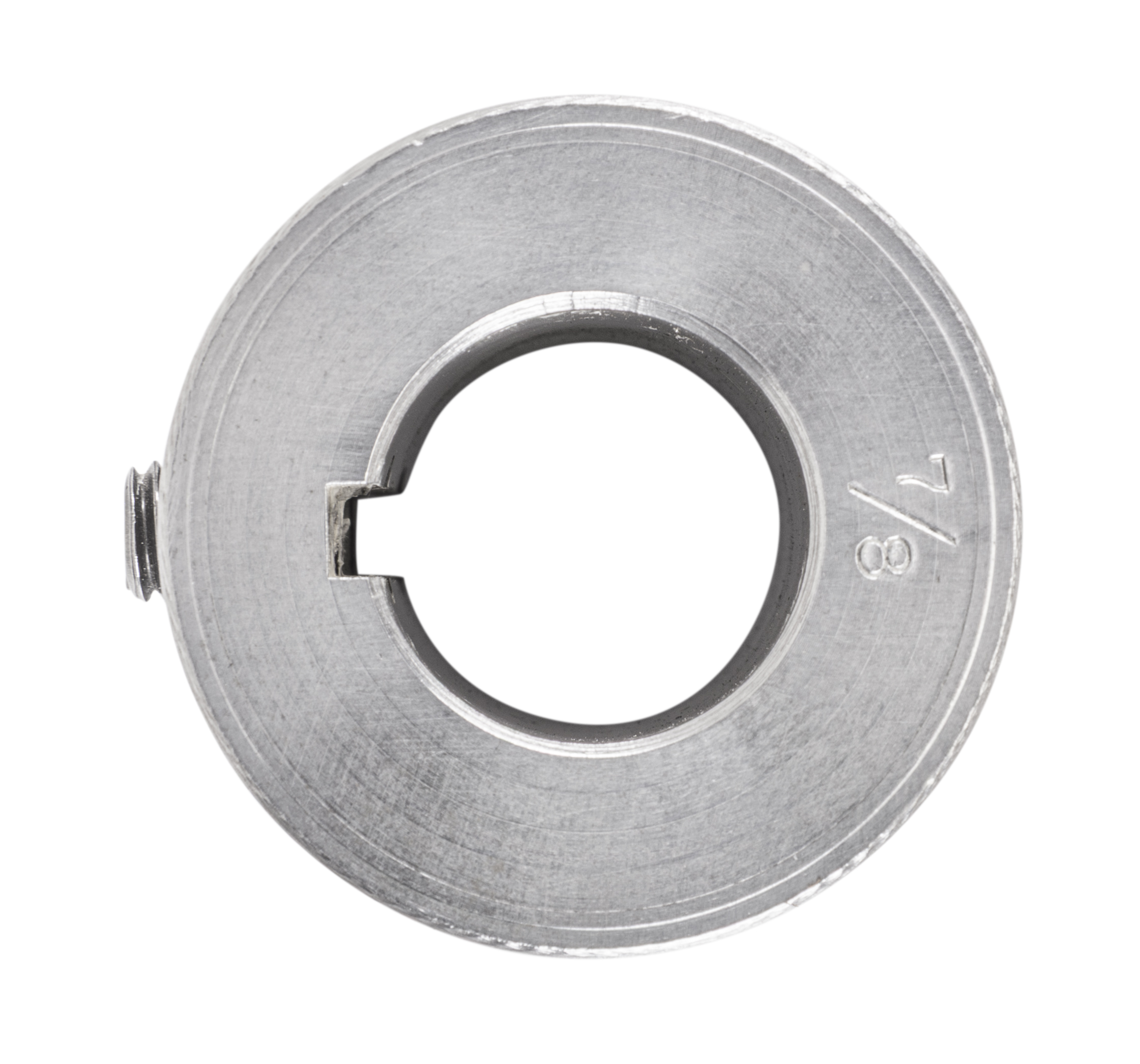

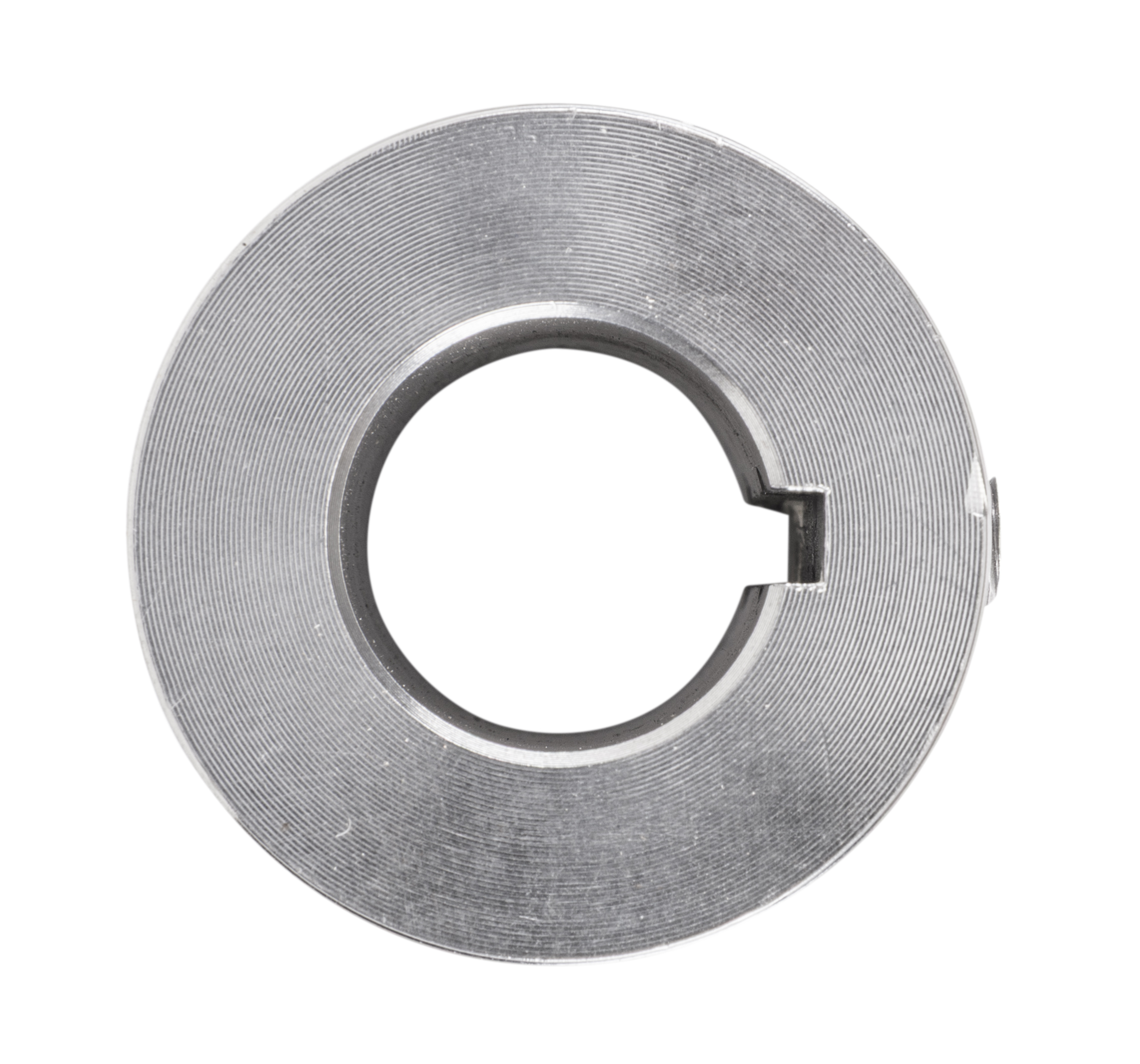

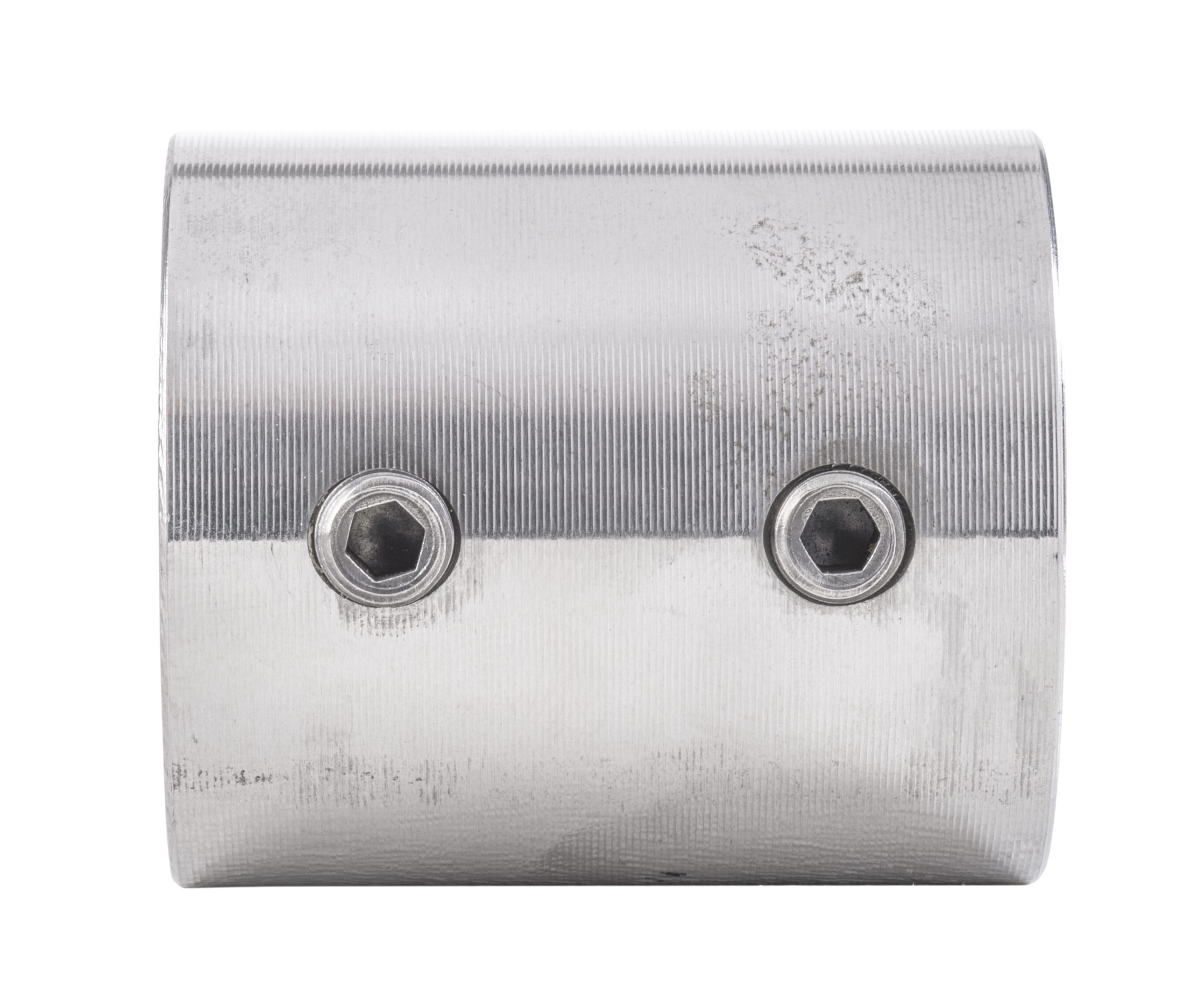

Shaft couplings are used to connect two shafts in line and transmit power from one to the other. Rigid couplings provide a fixed union between the shafts where misalignment is not present. Special couplings can be adapted to connect shafts of different diameters. Standard material is high-strength gray iron suitable to transmit the rated load capacities of C1018 commercial shafting. Couplings are finished machined to insure proper balance. Keys are furnished for all couplings. Bearings should be positioned as close as possible to the couplings.
Part Number | Shaft Size (in.) | Wt. | App. Wt. | Wt. (Oz.) | A (in.) | AA (in.) | B (in.) | BB (in.) | Bolts Size (in.) | C (in.) | CC (in.) | D (in.) | D (Min.) (in.) | D (Max.) (in.) | E (in.) | F (in.) | F Bolt (in.) | F Dia. Bolt (in.) | F Screw (in.) | G (in.) | H (in.) | Inside Dia. (in.) | J (in.) | K (in.) | Keyway Size (in.) | L (in.) | Length (in.) | M (in.) | N (in.) | Number of Bolts | Outside Dia. (in.) | P (in.) | Pipe Tap | Q (in.) | R (in.) | S (in.) | Set Screw (in.) | T (in.) | V (in.) | W (in.) | Width (in.) | Y (in.) | Press No. | Shipping Wt. (lbs.) | Dia. of Work (in.) | Capacity Over Table (in.) | Capacity Over Plate (in.) | Size of Ram (in.) | Leverage Ratio | App. Tons Press. | Height of Press (in.) | Largest Arbor (in.) | Base Dimensions (in.) | Size of Rolls | Number of Rolls | Split Outer Race |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1⁄4 | 1⁄4 | 1⁄4 | 0.19 | None | 3⁄4 | 1⁄2 | 8 - 32 x 1⁄8 | |||||||||||||||||||||||||||||||||||||||||||||||||
0.31 | 0.31 | 0.31 | 1⁄4 | None | 1 | 0.63 | 8 - 32 x 1⁄8 | |||||||||||||||||||||||||||||||||||||||||||||||||
0.37 | 0.37 | 0.37 | 1⁄4 | None | 1 | 3⁄4 | 10 - 24 x 1⁄8 | |||||||||||||||||||||||||||||||||||||||||||||||||
1⁄2 | 1⁄2 | 1⁄2 | 0.38 | 1⁄8 x 1⁄16 | 1 1⁄2 | 1 | 1⁄4 - 20 x 1⁄4 | |||||||||||||||||||||||||||||||||||||||||||||||||
0.62 | 0.62 | 0.62 | 1⁄2 | 3⁄16 x 3⁄32 | 2 | 1 1⁄4 | 5⁄16 - 18 x 5⁄16 | |||||||||||||||||||||||||||||||||||||||||||||||||
3⁄4 | 3⁄4 | 3⁄4 | 1⁄2 | 3⁄16 x 3⁄32 | 2 | 1 1⁄2 | 5⁄16 - 18 x 3⁄8 | |||||||||||||||||||||||||||||||||||||||||||||||||
0.87 | 0.87 | 0.87 | 1⁄2 | 3⁄16 x 3⁄32 | 2 | 1 3⁄4 | 5⁄16 - 18 x 3⁄8 | |||||||||||||||||||||||||||||||||||||||||||||||||
1 | 1 | 1 | 3⁄4 | 1⁄4 x 1⁄8 | 3 | 2 | 3⁄8 - 16 x 1⁄2 | |||||||||||||||||||||||||||||||||||||||||||||||||
1.12 | 1.12 | 1.12 | 3⁄4 | 1⁄4 x 1⁄8 | 3 | 2.13 | 3⁄8 - 16 x 1⁄2 | |||||||||||||||||||||||||||||||||||||||||||||||||
1 1⁄4 | 1 1⁄4 | 1 1⁄4 | 1 | 1⁄4 x 1⁄8 | 4 | 2 1⁄4 | 3⁄8 - 16 x 1⁄2 | |||||||||||||||||||||||||||||||||||||||||||||||||
1.37 | 1.37 | 1.37 | 1 | 5⁄16 x 5⁄32 | 4 1⁄2 | 2 1⁄2 | 3⁄8 - 16 x 1⁄2 |
All product weights are listed in pounds (Lbs.) unless otherwise noted.
